Slicing and Packaging Lines
Slicing, bagging and closing can be bought as separate machines; built as one line, the synchronisation system hands the product one by one to the next machine and the line runs with a single operator. HOBA offers five ready combinations.
The manual solution is a bag blower with a bench closing machine: 25 bags a minute. The semi-automatic line is a slicer, a bag blower and a closing conveyor: 30 bags. In the fully automatic line the bagging moves to the machine too: 60 bags. The bun line joins a disc or band slicer with a pillow packer: 100-125 a minute per row. The flatbread line joins the HWP with Kwik Lok closing: 25 bags.
- Manual
- 25 bags per minute
- Semi-automatic
- 30 bags per minute
- Fully automatic
- 60 bags per minute
- Bun line
- 100-125 per minute, per row
- Flatbread
- 25 bags per minute
- Manual: HBB bag blower and CC closer, 25 bags a minute
- Semi-automatic: HSA-55 or HSB, HBB, HPL-20 or HPL-KL, 30 bags a minute
- Fully automatic: band or frame slicer, HBS, HTA conveyor, 60 bags a minute
- Bun line: HSC-BL or HSC Twin and PP pillow packer, 100-125 a minute per row
- Flatbread: HWP and HTB-KL, 25 bags a minute
- Synchronisation system: product by product to the next machine
- Metal detector check, date and lot printing
- Clipband, tab lock, twist tie or tape closing
Five lines
The hourly count picks the automation; the product shape picks the slicer and the bagging body.
Bag blower and bench closer
The HBB bag blower with the Clip Close CC tab lock closer. Machine support for the bakery that packs by hand; 25 bags a minute, 240 V.
- 25 bags a minute
- Product 160-370 x 100-220 x 60-120 mm
- Sliced and unsliced bread, buns
- 240 V, 0.1 kW
- Plastic wicket bags; paper to order
- Capacity
- 25 bags per minute
- Machines
- HBB, CC
- Automation
- manual
- Power
- 0.1 kW, 240 V

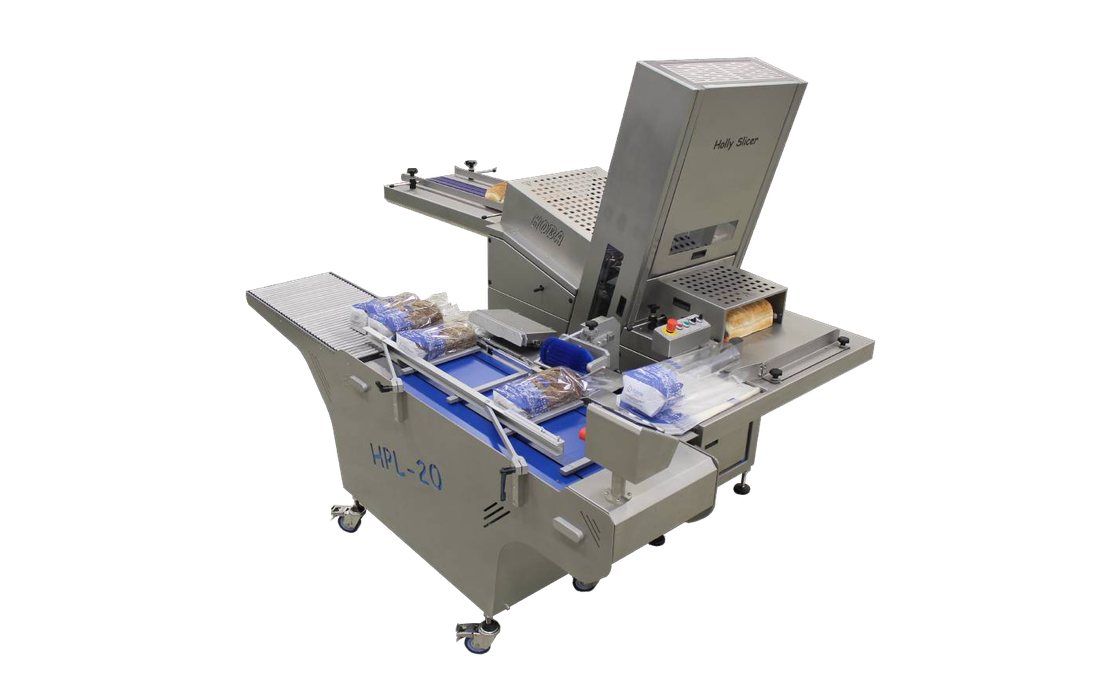

Slicer, bag blower and closing conveyor
The HSA-55 band or HSB frame slicer, the HBB bag blower and the HPL-20 clipband or HPL-KL Kwik Lok conveyor. The compact line of the semi-industrial bakery; 30-35 bags a minute.
- 30-35 bags a minute
- Loaf 200-360 x 80-200 x 70-160 mm
- Slice thickness from 9 mm
- Clipband or tab lock
- Metal detector check
- Date and lot printing
- The operator fits the bag, the machines do the rest
- Capacity
- 30-35 bags per minute
- Machines
- HSA-55 or HSB, HBB, HPL-20 or HPL-KL
- Automation
- semi
- Loaf
- 200-360 x 80-200 x 70-160 mm
Slicer, HBS bagloader and HTA conveyor
A band or frame slicer connects in sync to the HBS bagloader, which connects to the HTA closing conveyor. The product is bagged and closed without being touched; 60 bags a minute.
- 60 bags a minute
- HSA-22 or HSB-22 slicer
- HBS fully automatic bagloader
- HTA-15S, HTA-5, HTA-KL, HTA-TT or HTA-Tape closing
- Synchronisation system
- Automatic bag change option
- One operator
- Capacity
- 60 bags per minute
- Machines
- slicer, HBS, HTA
- Automation
- full
- Closure
- clip, tab lock, tie, tape

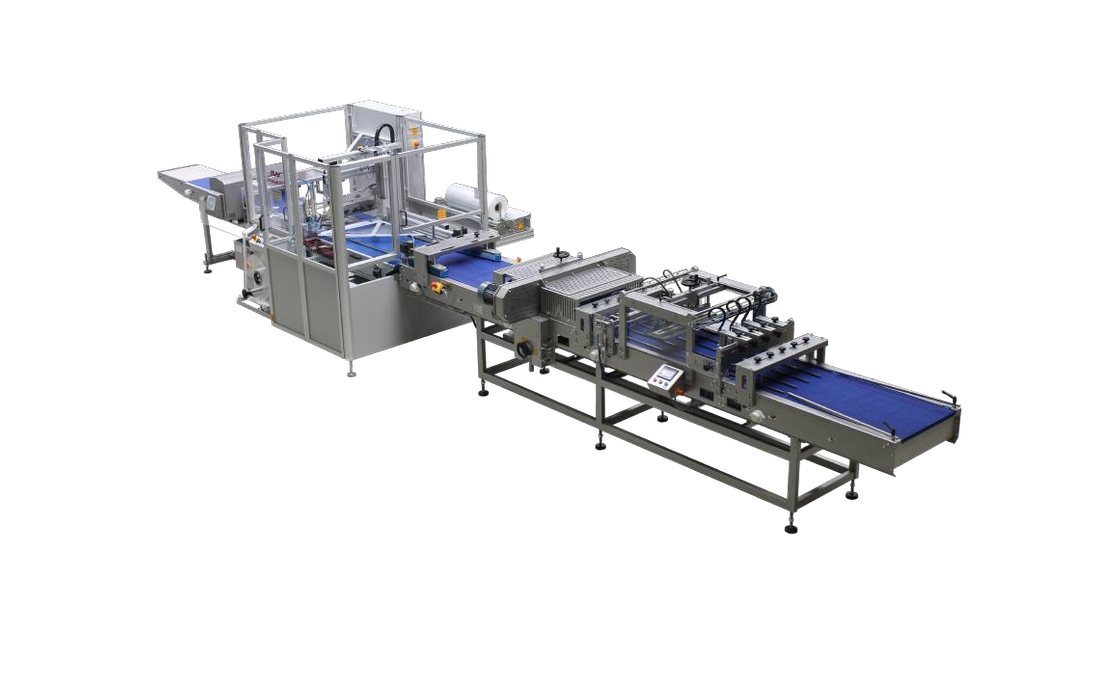

HSC slicer and PP pillow packer
The HSC-BL full-cut or HSC Twin hinge-cut slicer with the PP pillow packer. Centre-folded film sealed on three sides; 450 or 750 mm belt width, 100 programs. 100-125 a minute per row.
- 100-125 a minute per row
- Hamburger buns, hot dog buns, baguettes, cake
- Diameter 80-120 mm, height 40-100 mm
- Length up to 800 mm, width 500 mm
- PP 5022: 450 mm belt, PP 7522: 750 mm belt
- Pillow pack sealed on three sides
- Count and group option
- 400 V, 4.5 kW, 6 bar 10 L/min
- Capacity
- 100-125 per minute, per row
- Machines
- HSC-BL or HSC Twin, PP
- Pack
- pillow, three-side seal
- Power
- 4.5 kW, 400 V

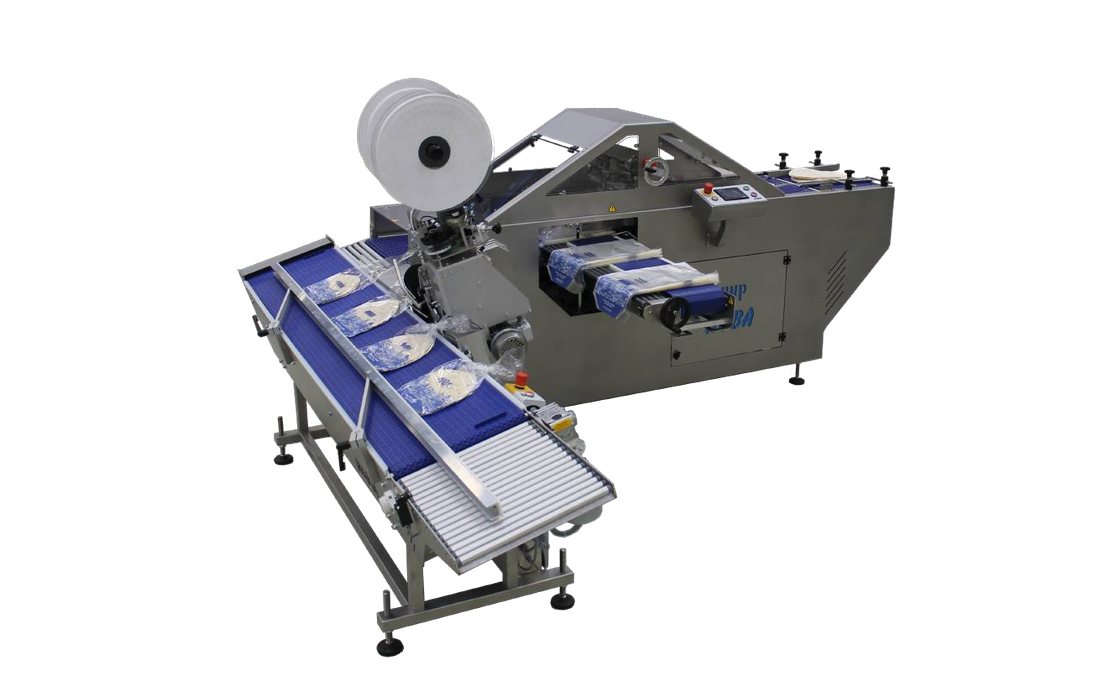

HWP wrap packer and HTB-KL Kwik Lok closing
The HWP wrap packer for pita, tortilla and naan with the Kwik Lok 910A closing conveyor. Stainless body, automatic bag change; 25 bags a minute, 7 kW.
- 25 bags a minute
- Diameter 200-300 mm, height 40-80 mm
- Belt infeed for the pita
- Pusher plates to the product
- Automatic bag change
- Kwik Lok tab lock, plastic or paper
- Metal detector check, date and lot printing
- 400 V, 7 kW, 6 bar 10 L/min
- Capacity
- 25 bags per minute
- Machines
- HWP, HTB-KL
- Product
- diameter 200-300 mm, height 40-80 mm
- Power
- 7 kW, 400 V
Tell us the product and the hourly count, and we will lay out the machines and the closing system as one line.
