Bag Closing Conveyors
The bagged product travels on a pusher conveyor to the closing head and is closed with clipband, tab lock, twist tie or tape. The closing system sets the look on the shelf and how the bag is reopened; it is chosen for the market.
The HPL range is for the semi-automatic line: with the bag blower, 30 bags a minute. The HTA range is for the fully automatic line: behind the HBS bagloader, 60 bags a minute. The Mini Pack stands alone for the small bakery, the CL-FLOW runs after a flowpack without synchronisation. All take a vacuum pump, the HBT bag tensioner and a date coder.
- Semi-automatic
- 25-30 bags per minute
- Fully automatic
- 40-60 bags per minute
- Closure
- clipband, tab lock, twist tie, tape
- Product
- 140-450 x 80-260 x 20-170 mm
- Power
- 0.4-3 kW
- Clipband: Mini Pack, HPL-20, HTA-15, HTA-15S, HTA-15X, CL-FLOW
- Tab lock: HPL-10, HPL-KL, HTA-5, HTA-KL
- Twist tie HTA-TT, tape HTA-Tape
- Semi-automatic 25-30, fully automatic 40-60 bags a minute
- Product 140-450 mm long, 80-260 mm wide, 20-170 mm high
- Clip wire 0.6 / 0.7 / 0.8 mm
- Vacuum pump, HBT bag tensioner, date coder
- Horizontal or inclined, in different lengths
Twelve conveyors
The closure follows the market, the speed follows the automation: HPL semi-automatic, HTA fully automatic.
Compact clipband closer
A standalone clipband closer for the small bakery. Holly CL closing head built in; pairs with a slicer or a horizontal or vertical packing machine. 25 bags a minute.
- 25 bags a minute
- Product 140-450 x 80-260 x 20-120 mm
- Clip wire 0.6 / 0.7 / 0.8 mm
- 400 V, 0.4 kW
- Option: HBB bag blower
- Options: outfeed belt, rotary collecting table
- Options: special product guide, date coder
- Capacity
- 25 bags per minute
- Closure
- clipband
- Product
- 140-450 x 80-260 x 20-120 mm
- Power
- 0.4 kW, 400 V

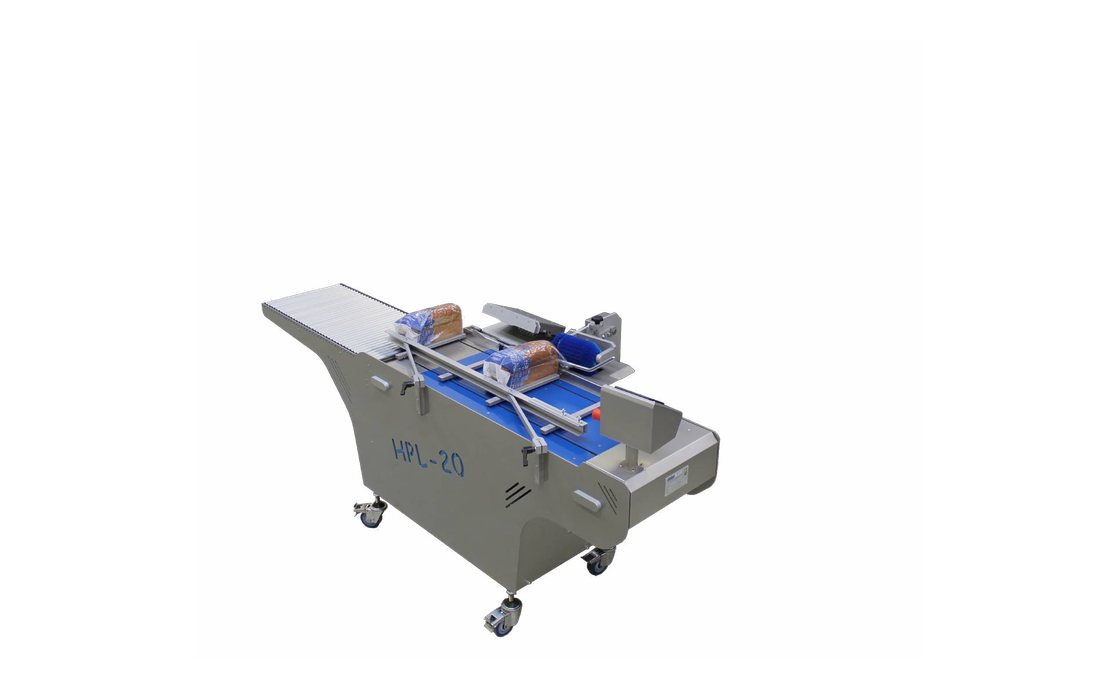

Semi-automatic clipband conveyor
The closing leg of the compact slicing and packing solution for the semi-industrial bakery. A vacuum pump draws out the air, the HBT tensioner smooths the bag, the clipband closes it. 30 bags a minute.
- 30 bags a minute
- Product 140-370 x 80-240 x 70-170 mm
- Clip wire 0.6 / 0.7 / 0.8 mm
- Vacuum pump and HBT tensioner as standard
- Pusher transport on a plastic plate
- 900 mm free roller outfeed
- Wheels with brake
- 400 V, 2 kW, 6 bar 10 L/min
- Options: HBB bag blower, date coder
- Capacity
- 30 bags per minute
- Closure
- clipband
- Automation
- semi
- Product
- 140-370 x 80-240 x 70-170 mm
- Power
- 2 kW, 400 V
Semi-automatic tab lock conveyor
A semi-automatic conveyor with a tab lock closing head and the HBT tensioner. Pairs with the HSA-55, HSB-55 and HSB Mini slicers. 30 bags a minute.
- 30 bags a minute
- Product 140-370 x 80-240 x 70-170 mm
- Tab lock in different colours and hole sizes
- HBT tensioner as standard
- 900 mm free roller outfeed
- Wheels with brake
- 400 V, 0.6 kW
- Options: HBB, labelled closure, date coder
- Capacity
- 30 bags per minute
- Closure
- tab lock
- Automation
- semi
- Product
- 140-370 x 80-240 x 70-170 mm
- Power
- 0.6 kW, 400 V

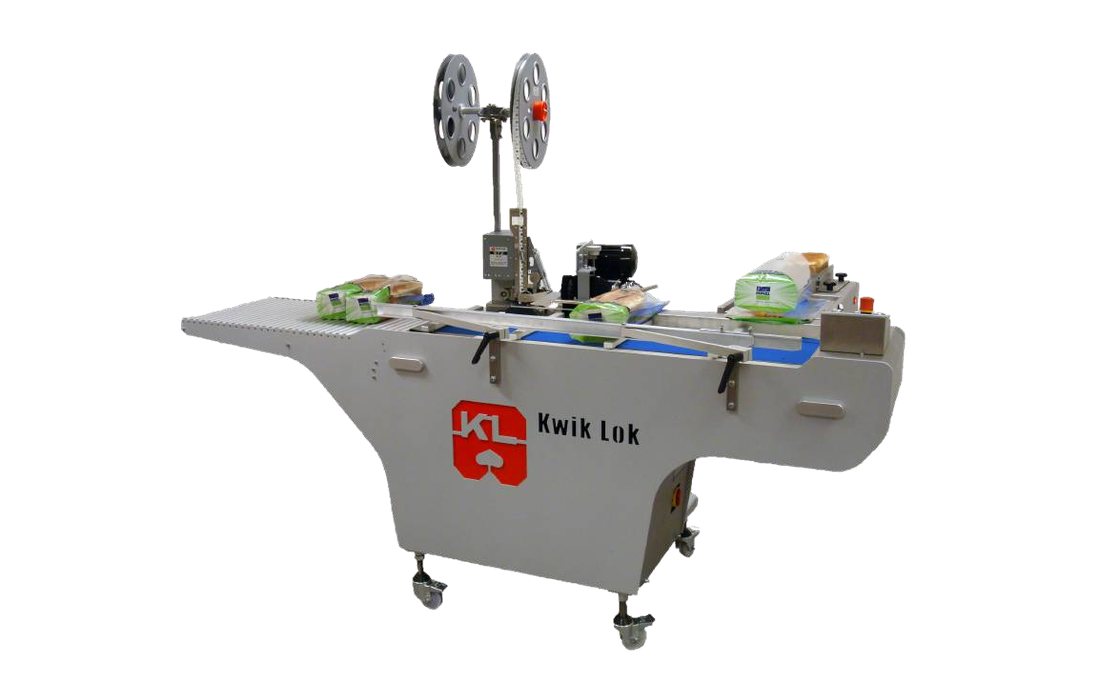

Semi-automatic Kwik Lok conveyor
Tab lock with the Kwik Lok 910A closing machine; a labelled closure for the shelf. A compact solution for the semi-industrial bakery. 30 bags a minute.
- 30 bags a minute
- Product 140-370 x 80-240 x 70-170 mm
- Kwik Lok 910A closing machine
- HBT tensioner as standard
- Options: labelled closure, Label-master
- Options: HBB bag blower, date coder
- 400 V, 2 kW
- Capacity
- 30 bags per minute
- Closure
- Kwik Lok tab lock
- Automation
- semi
- Product
- 140-370 x 80-240 x 70-170 mm
- Power
- 2 kW, 400 V

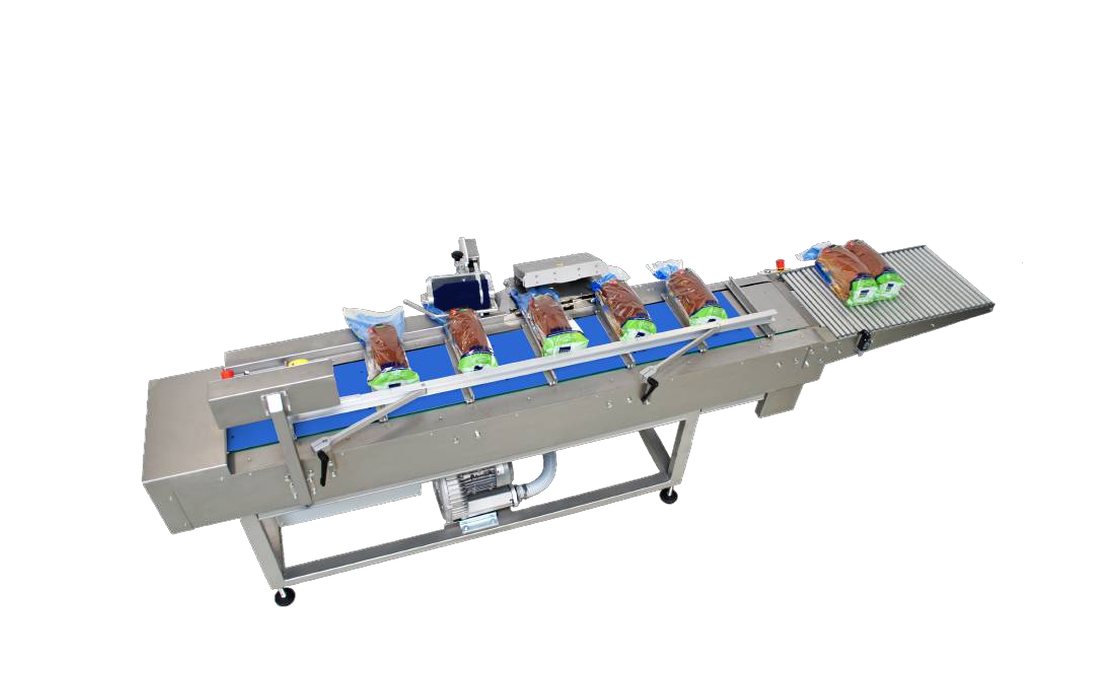

Fully automatic clipband, intermittent
The intermittent clipband conveyor of the fully automatic line. Behind the HBS bagloader; horizontal or inclined, in different lengths. 30-35 bags a minute.
- 30-35 bags a minute
- Product 140-400 x 80-240 x 70-150 mm
- Clip wire 0.6 / 0.7 / 0.8 mm
- HBT tensioner as standard
- 1000 mm buffer roller outfeed
- 400 V, 2.2 kW, 6 bar 10 L/min
- Options: vacuum pump, HBB, date coder
- Option: roller infeed after a flowpack
- Capacity
- 30-35 bags per minute
- Closure
- clipband
- Automation
- full, intermittent
- Product
- 140-400 x 80-240 x 70-150 mm
- Power
- 2.2 kW, 400 V

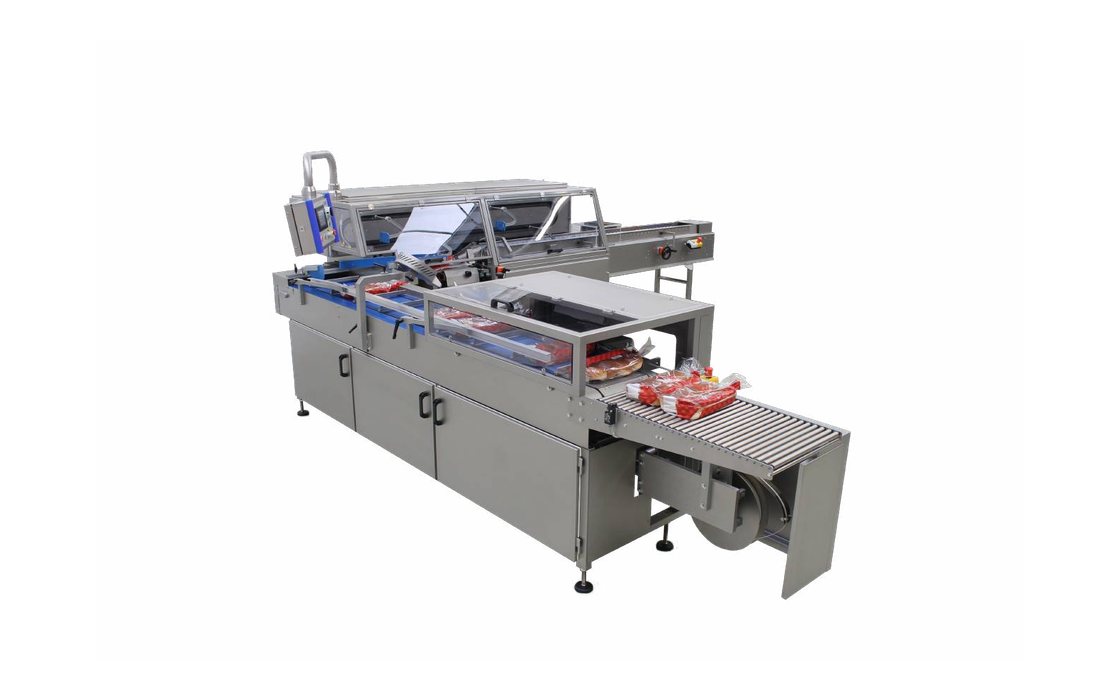

Fully automatic clipband, continuous
The continuous clipband conveyor; behind the HBS or after a flowpack. The fastest clipband closing in the range: 60 bags a minute.
- 60 bags a minute
- Product 140-400 x 80-240 x 70-150 mm
- Continuous operation
- Clip wire 0.6 / 0.7 / 0.8 mm
- HBT tensioner as standard
- 400 V, 3 kW, 6 bar 10 L/min
- Options: vacuum pump, buffer belt, HBB, date coder
- Capacity
- 60 bags per minute
- Closure
- clipband
- Automation
- full, continuous
- Product
- 140-400 x 80-240 x 70-150 mm
- Power
- 3 kW, 400 V
Fully automatic clipband, 40 a minute
The speed step between the HTA-15 and the HTA-15S. Semi-automatic with a slicer, fully automatic with the HBS. 40 bags a minute.
- 40 bags a minute
- Product 140-400 x 80-240 x 70-150 mm
- Clip wire 0.6 / 0.7 / 0.8 mm
- HBT tensioner as standard
- Horizontal or inclined
- 400 V, 1.4 kW, 6 bar 10 L/min
- Options: vacuum, buffer belt, 500 mm labelling conveyor, stainless body
- Capacity
- 40 bags per minute
- Closure
- clipband
- Automation
- full
- Product
- 140-400 x 80-240 x 70-150 mm
- Power
- 1.4 kW, 400 V
Fully automatic tab lock conveyor
A fully automatic conveyor with a tab lock closing head; also runs semi-automatically with a slicer. 60 bags a minute, 0.5 kW.
- 60 bags a minute
- Product 140-370 x 80-240 x 70-170 mm
- Tab lock in different colours and hole sizes
- HBT tensioner as standard
- 1000 mm buffer roller outfeed
- 400 V, 0.5 kW
- Options: HBB, 500 mm labelling conveyor, outfeed belt, stainless body, date coder
- Capacity
- 60 bags per minute
- Closure
- tab lock
- Automation
- full
- Product
- 140-370 x 80-240 x 70-170 mm
- Power
- 0.5 kW, 400 V

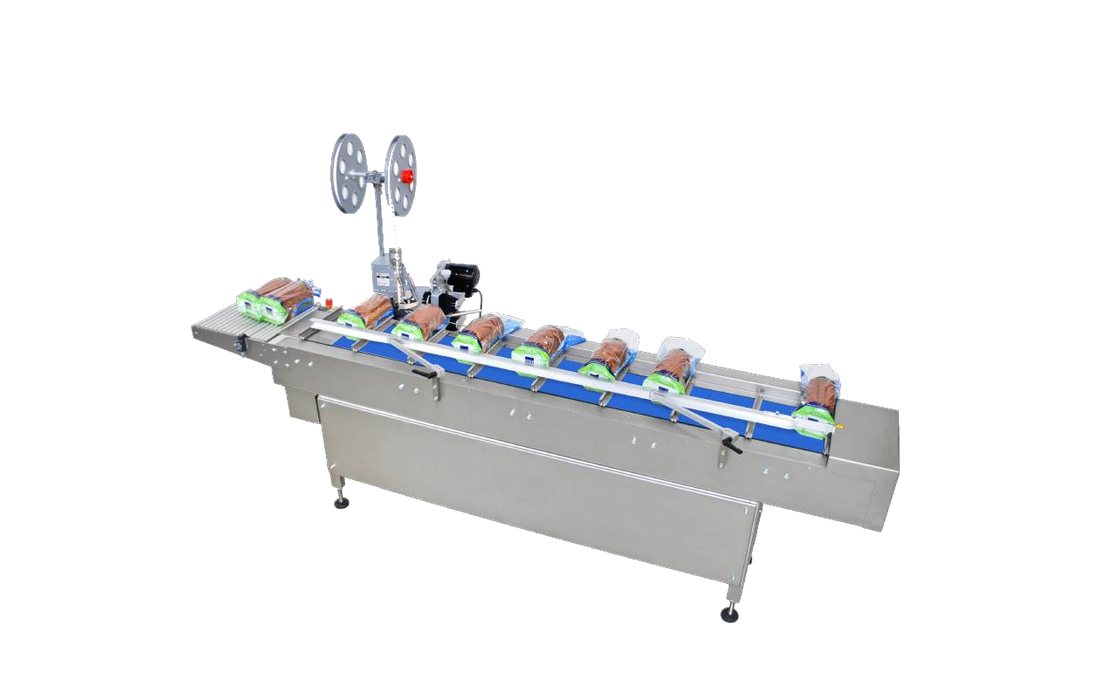

Fully automatic Kwik Lok conveyor
Tab lock with the Kwik Lok 910A; a plain or labelled closure. Fully automatic line with the slicer and the HBS. 60 bags a minute.
- 60 bags a minute
- Product 140-370 x 80-240 x 70-170 mm
- Kwik Lok 910A closing machine
- 1000 mm buffer roller outfeed
- 400 V, 0.5 kW
- Options: HBT tensioner, HBB, 500 mm labelling conveyor
- Options: outfeed belt, stainless covers and frame, date coder
- Capacity
- 60 bags per minute
- Closure
- Kwik Lok tab lock
- Automation
- full
- Product
- 140-370 x 80-240 x 70-170 mm
- Power
- 0.5 kW, 400 V
Fully automatic twist tie conveyor
A fully automatic conveyor with a pneumatic twist tie closing machine. Optional mechanical and electrical sync with the packing machine. 60 bags a minute.
- 60 bags a minute
- Product 140-400 x 80-240 x 70-150 mm
- Pneumatic twist tie
- HBT tensioner as standard
- 1000 mm buffer roller outfeed
- 400 V, 0.6 kW, 5 bar 6 L/min
- Options: synchronisation, 500 mm labelling conveyor, stainless body
- Capacity
- 60 bags per minute
- Closure
- twist tie
- Automation
- full
- Product
- 140-400 x 80-240 x 70-150 mm
- Power
- 0.6 kW, 400 V
Fully automatic tape closing conveyor
A fully automatic conveyor with a tape closing head; date printing on the tape. 60 bags a minute.
- 60 bags a minute
- Product 140-400 x 80-240 x 70-150 mm
- Tape closing head
- 1000 mm free roller outfeed
- 400 V, 1.4 kW, 6 bar 6 L/min
- Options: synchronisation, 500 mm labelling conveyor, stainless body, date coder
- Capacity
- 60 bags per minute
- Closure
- tape
- Automation
- full
- Product
- 140-400 x 80-240 x 70-150 mm
- Power
- 1.4 kW, 400 V

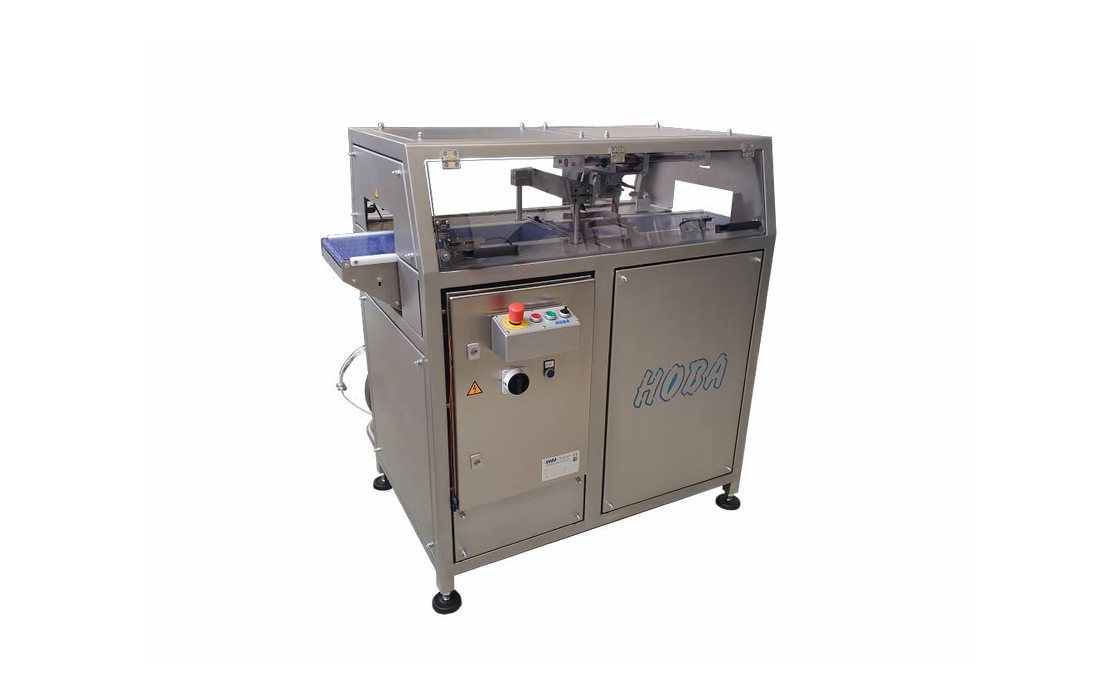

In-line clipband after the flowpack
Closes tray packs, baguettes and whole bread from a flowpack line with clipband, in line. Self-controlled on two adjustable belts; no synchronisation with the packing machine needed. 30 bags a minute.
- 30 bags a minute
- Product 140-370 x 80-240 x 70-170 mm
- After flowpacks and tray packs
- Two belts with adjustable speed
- No synchronisation needed
- Clip wire 0.6 / 0.7 / 0.8 mm
- 400 V, 0.5 kW, 6 bar 10 L/min
- Options: stainless body, rotary table, pneumatic pusher, date coder
- Capacity
- 30 bags per minute
- Closure
- clipband, in line
- Position
- after the flowpack
- Product
- 140-370 x 80-240 x 70-170 mm
- Power
- 0.5 kW, 400 V
Tell us the closure, the bag size and the bags per minute, and we will pick the conveyor and the add-ons.
